Camalot C4
Free Shipping over $100
Pickup available at 415 North Lake Boulevard
Usually ready in 24 hours
Camalot C4
#5
415 North Lake Boulevard
415 North Lake Boulevard
Tahoe City CA 96145
United States
Shipping & Returns
- Items ship in 3 days or less
- 10 day return policy
- No returns on sale items
- We do not ship anywhere outside of the contiguous US
Click here for our Shipping and Return Policies
- Type Active
- Best Use Trad
- Strength Ratings [.4] 9 kN (2,023 lbf) [.5] 12 kN (2,698 lbf) [.75] 12 kN (2,698 lbf) [#1] 12 kN (2,698 lbf) [#2] 12 kN (2,698 lbf) [#3] 12 kN (2,698 lbf) [#4] 14 kN (3,147 lbf) [#5] 14 kN (3,147 lbf) [#6] 14 kN (3,147 lbf)
- Weight [.4] 77.5 g (2.73 oz) [.5] 93 g (3.28 oz) [.75] 107.5 g (3.76 oz) [#1] 123.9 g (4.37 oz) [#2] 140.3 g (4.94 oz) [#3] 181.1 g (6.38 oz) [#4] 257.8 g (9.09 oz) [#5] 348.1 g (12.27 oz) [#6] 529.9 g (16.69 oz)
Shipping & Returns
10 day
Features

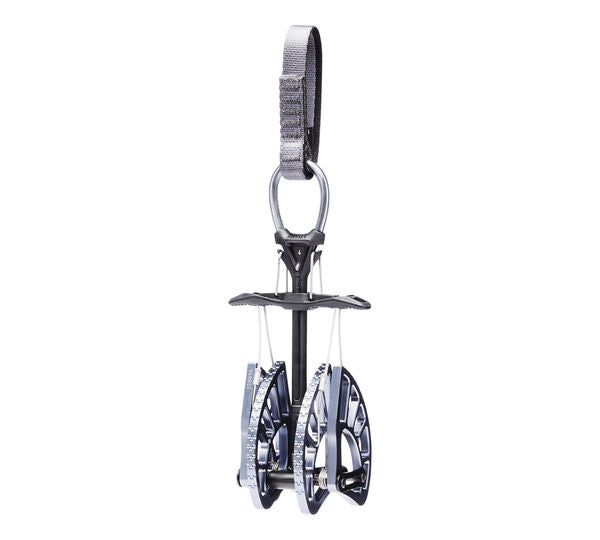

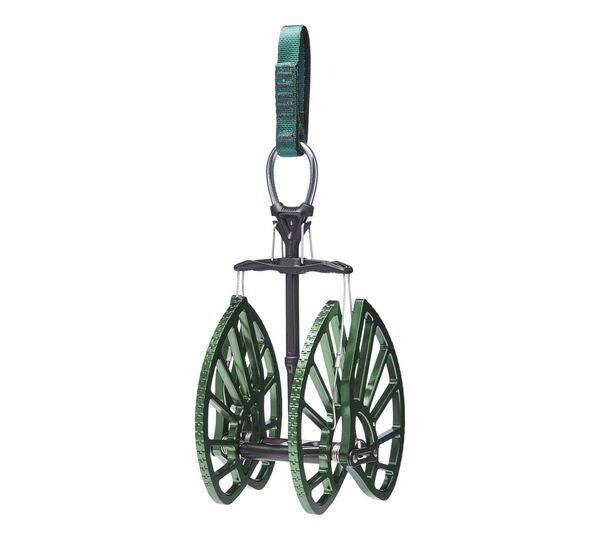

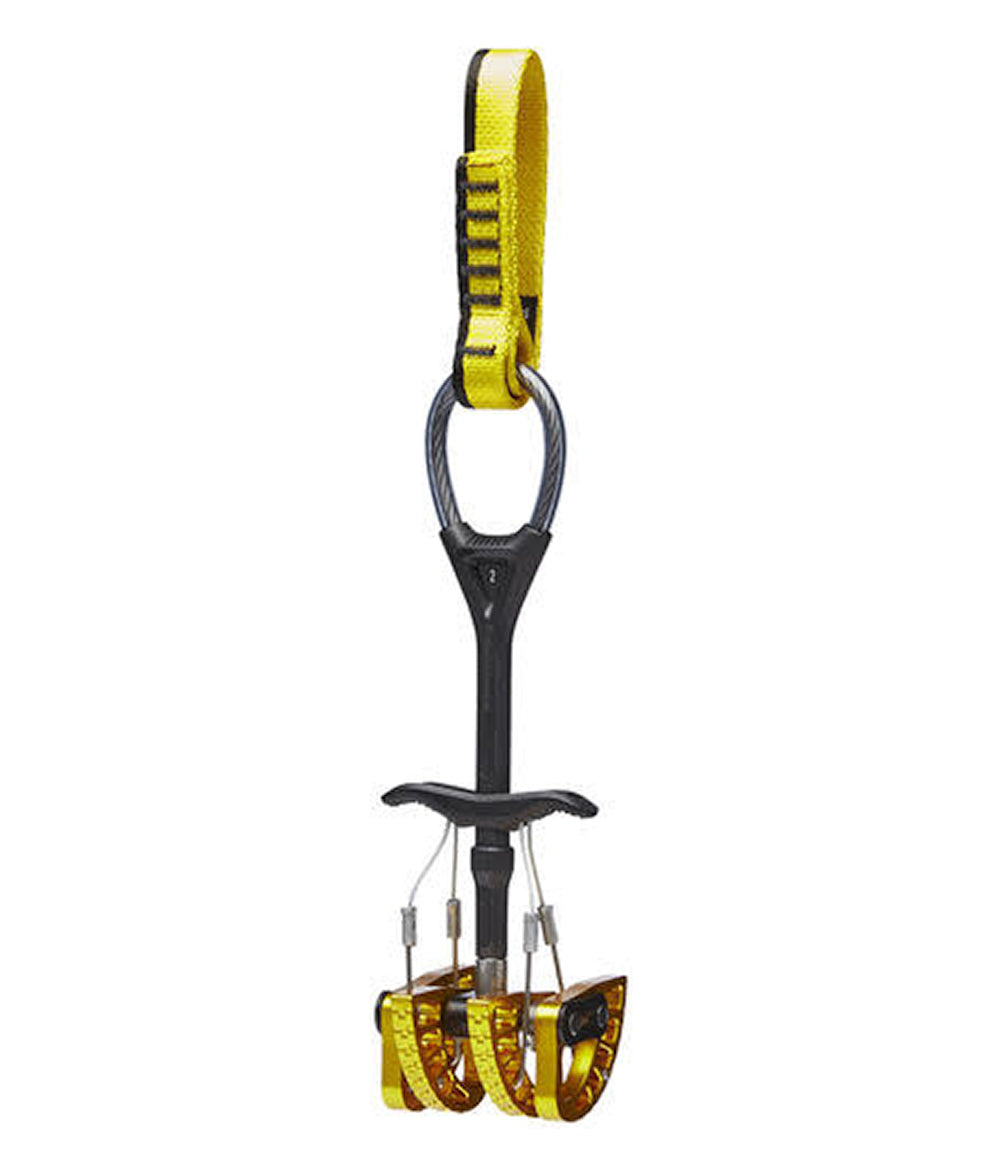

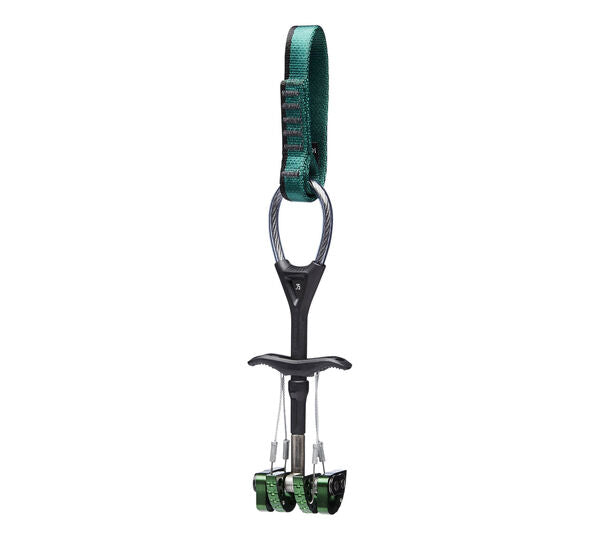

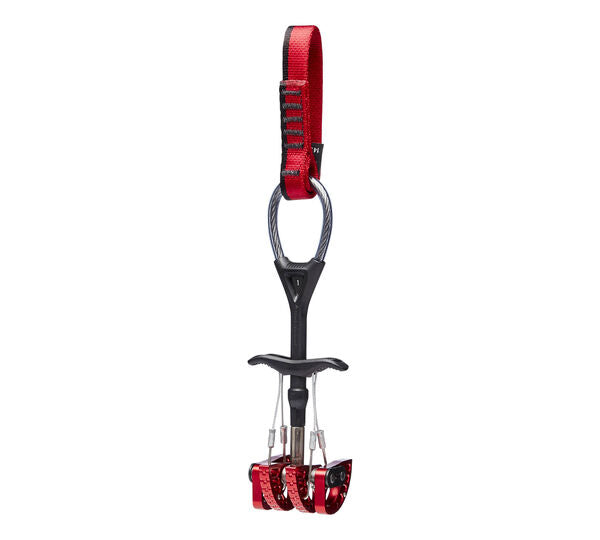

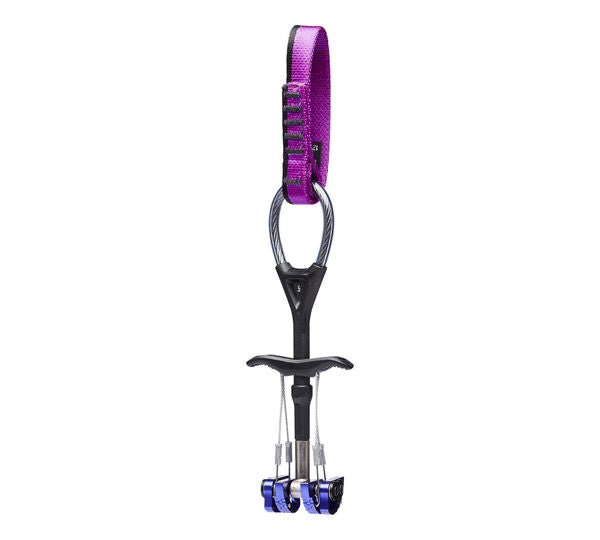

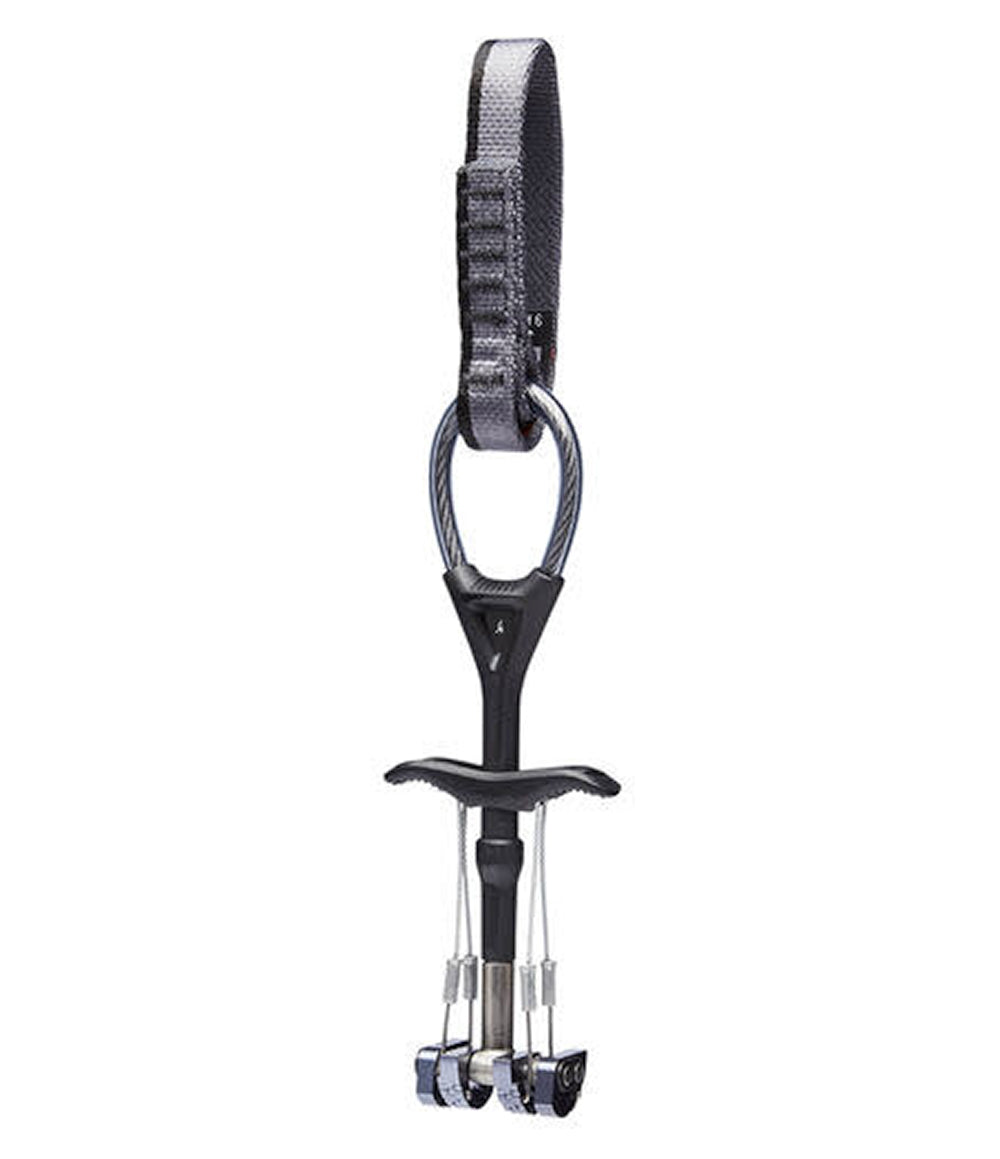

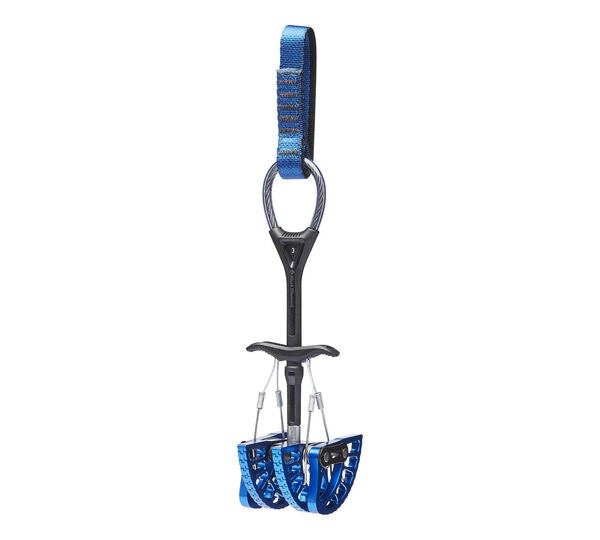

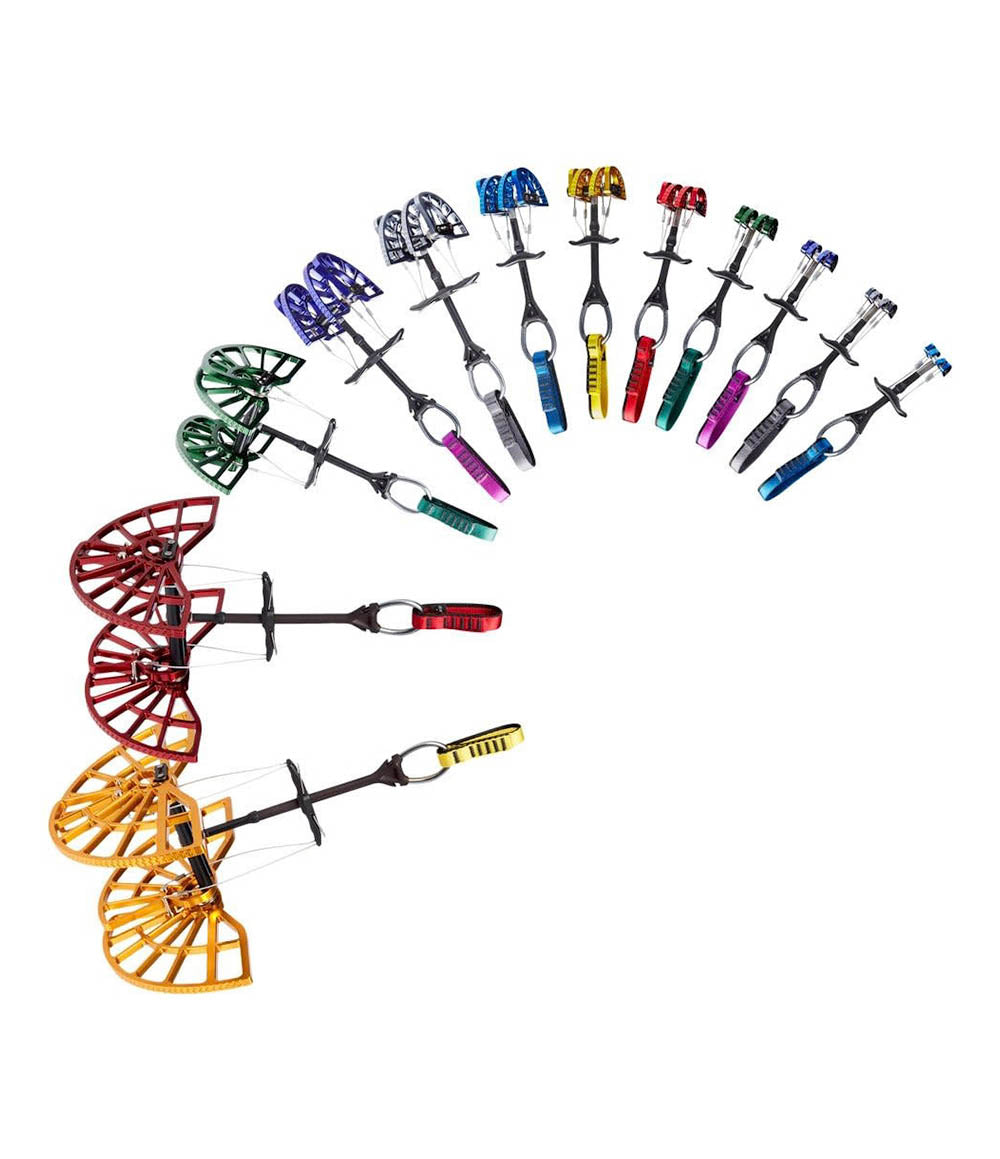

The world’s best-selling, most trusted cam just got better. The new, redesigned Camalot C4 has now upped the ante, considering it’s 10% lighter yet just as durable as before. Plus, it features a modern design that improves on the old tried-and-true Camalots. The cam’s lobes are lighter and more sculpted, optimized for strength to weight, while the slings have a visual update for easier differentiation when racking. And speaking of racking, we’re introducing a new innovative trigger keeper on sizes #4, #5, #6, #7, and #8 that keeps the big guys contracted for compact racking and immediately release when you’re ready to place. We’ve also widened the trigger as well for better handling. New design is 10% lighter.
Features:
- Lighter sculpted lopes optimized for strength to weight.

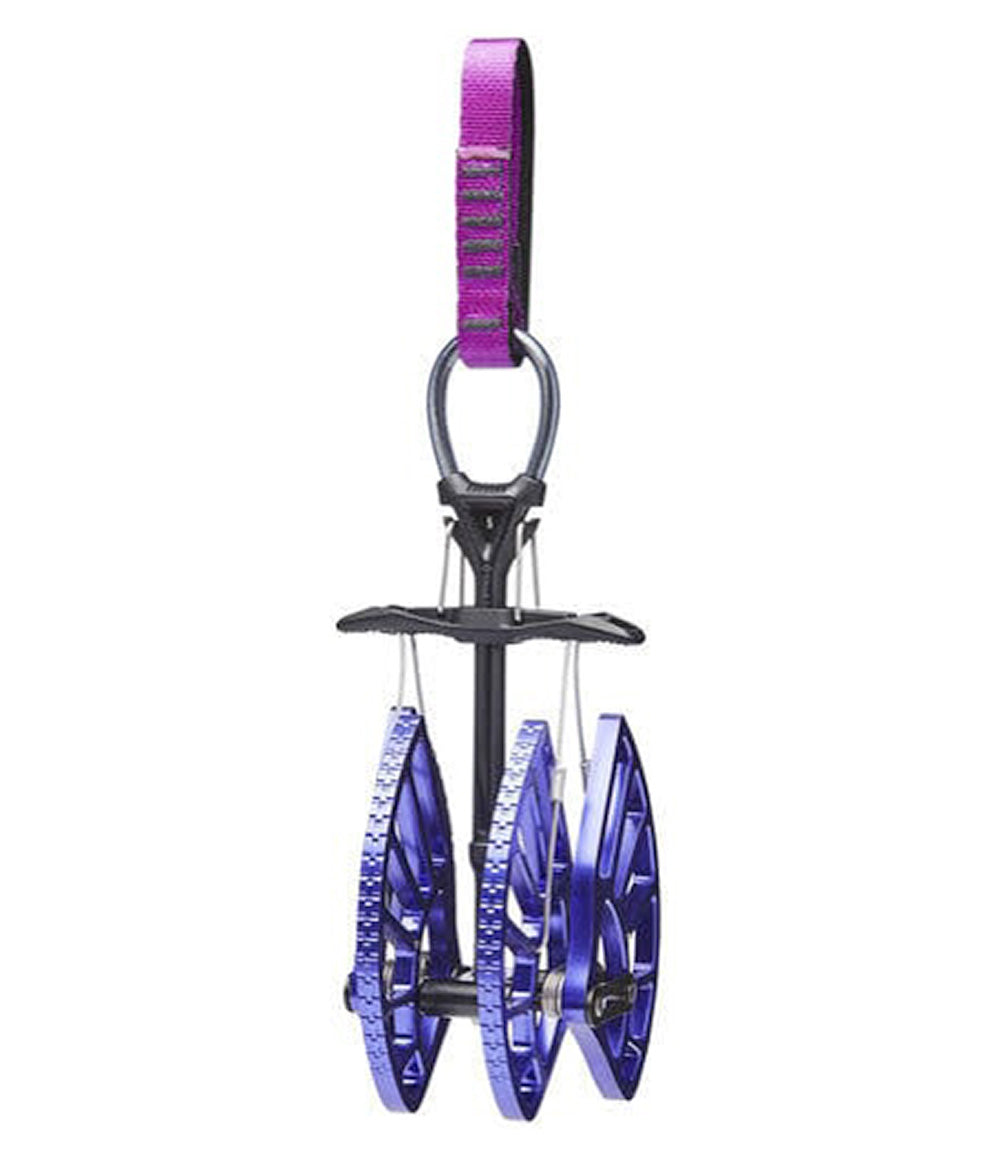

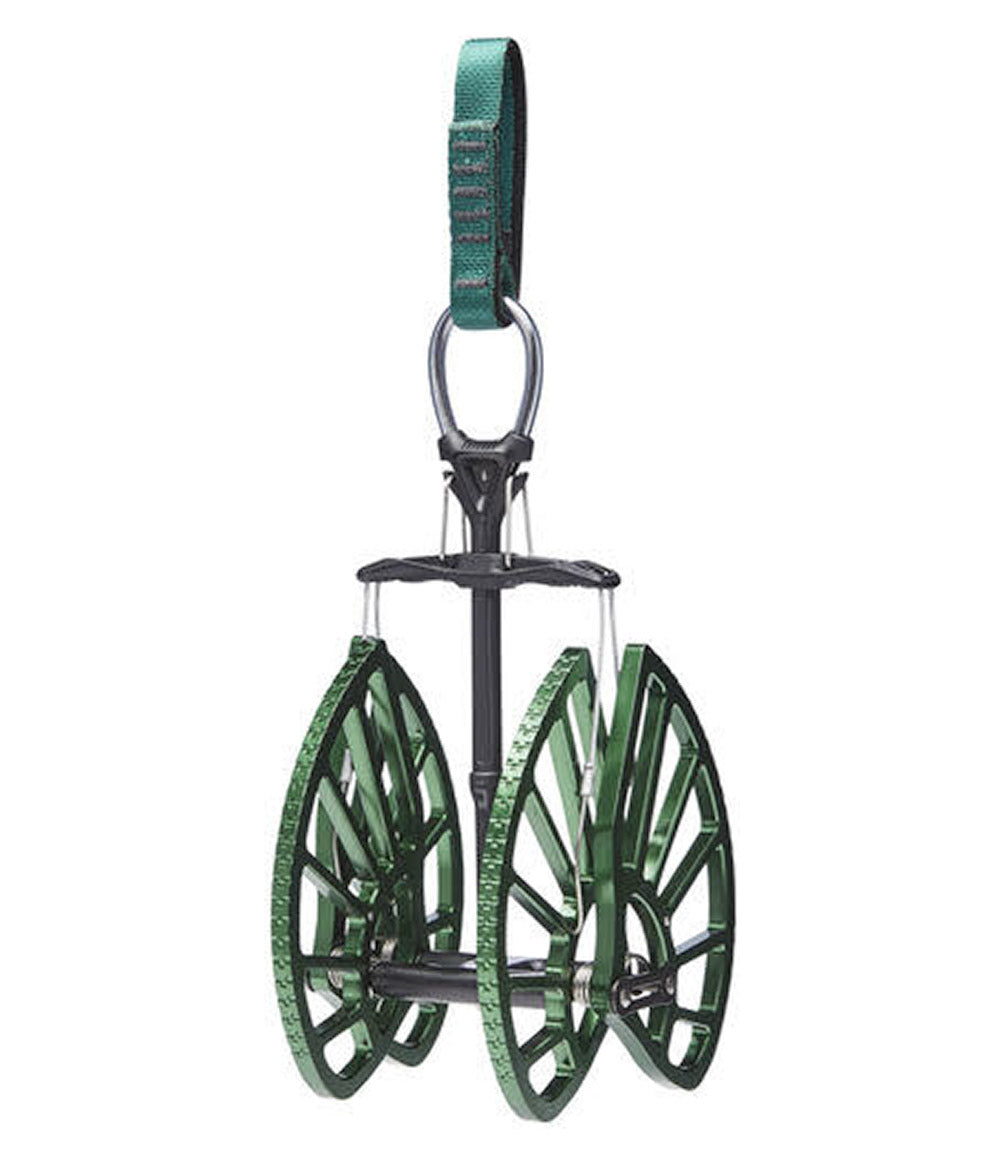

- Innovative trigger keeper on sizes #4, #5, #6, #7, and #8 for compact racking.
- Slings are updated visually for easier differentiation when racking.
- Double-axle design offers the widest range for each cam unit.
- C-Loop continuous cable stem design is strong and durable.
- Color-coded for easy identification and a wide range of sizes.
| Weight | Strength | Range |
|
[0.4] 77.5 g (2.73 oz) |
[0.4] 9 kN, 2023 lbf |
[0.4] 15.5-26.7 mm (0.61-1.05 in) |
|
[0.5] 93 g (3.28 oz) |
[0.5 - 3] 12 kN, 2698 lbf |
[0.5] 19.6-33.5 mm (0.77-1.32 in) |
|
[0.75] 107.5 g (3.79 oz) |
[0.5 - 3] 12 kN, 2698 lbf |
[0.75] 23.9-41.2 mm (0.94-1.62 in) |
|
[1] 123.9 g (4.37 oz) |
[0.5 - 3] 12 kN, 2698 lbf |
[1] 30.2-52.1 mm (1.19-2.05 in) |
|
[2] 140.3 g (4.95 oz) |
[0.5 - 3] 12 kN, 2698 lbf |
[2] 37.2-64.9 mm (1.46-2.55 in) |
|
[3] 181.1 g (6.39 oz) |
[0.5 - 3] 12 kN, 2698 lbf |
[3] 50.7-87.9 mm (2.00-3.46 in) |
|
[4] 257.8 g (9.09 oz) |
[4 - 6] 14 kN, 3147 lbf |
[4] 66.0-114.7 mm (2.60-4.51 in) |
|
[5] 348.1 g (12.28 oz) |
[4 - 6] 14 kN, 3147 lbf |
[5] 85.4-148.5 mm (3.36-5.85 in) |
|
[6] 529.9 g (1 lb 2.7 oz) |
[4 - 6] 14 kN, 3147 lbf |
[6] 114.1-195.0 mm (4.50-7.68 in) |
Technical Specs
| Type | Active |
|---|---|
| Best Use | Trad |
| Strength Ratings | [.4] 9 kN (2,023 lbf) [.5] 12 kN (2,698 lbf) [.75] 12 kN (2,698 lbf) [#1] 12 kN (2,698 lbf) [#2] 12 kN (2,698 lbf) [#3] 12 kN (2,698 lbf) [#4] 14 kN (3,147 lbf) [#5] 14 kN (3,147 lbf) [#6] 14 kN (3,147 lbf) |
| Weight | [.4] 77.5 g (2.73 oz) [.5] 93 g (3.28 oz) [.75] 107.5 g (3.76 oz) [#1] 123.9 g (4.37 oz) [#2] 140.3 g (4.94 oz) [#3] 181.1 g (6.38 oz) [#4] 257.8 g (9.09 oz) [#5] 348.1 g (12.27 oz) [#6] 529.9 g (16.69 oz) |
| Range | [.4] 15.5-26.7 mm (0.61-1.05 in) [.5] 19.6-33.5 mm (0.77-1.32 in) [.75] 23.9-41.2 mm (0.94-1.62 in) [#1] 30.2-52.1 mm (1.19-2.05 in) [#2] 37.2-64.9 mm (1.46-2.55 in) [#3] 50.7-87.9 mm (2.00-3.46 in) [#4] 66.0-114.7 mm (2.60-4.51 in) [#5] 85.4-148.5 mm (3.36-5.85 in) [#6] 114.1-195.0 mm (4.50-7.68 in) |
